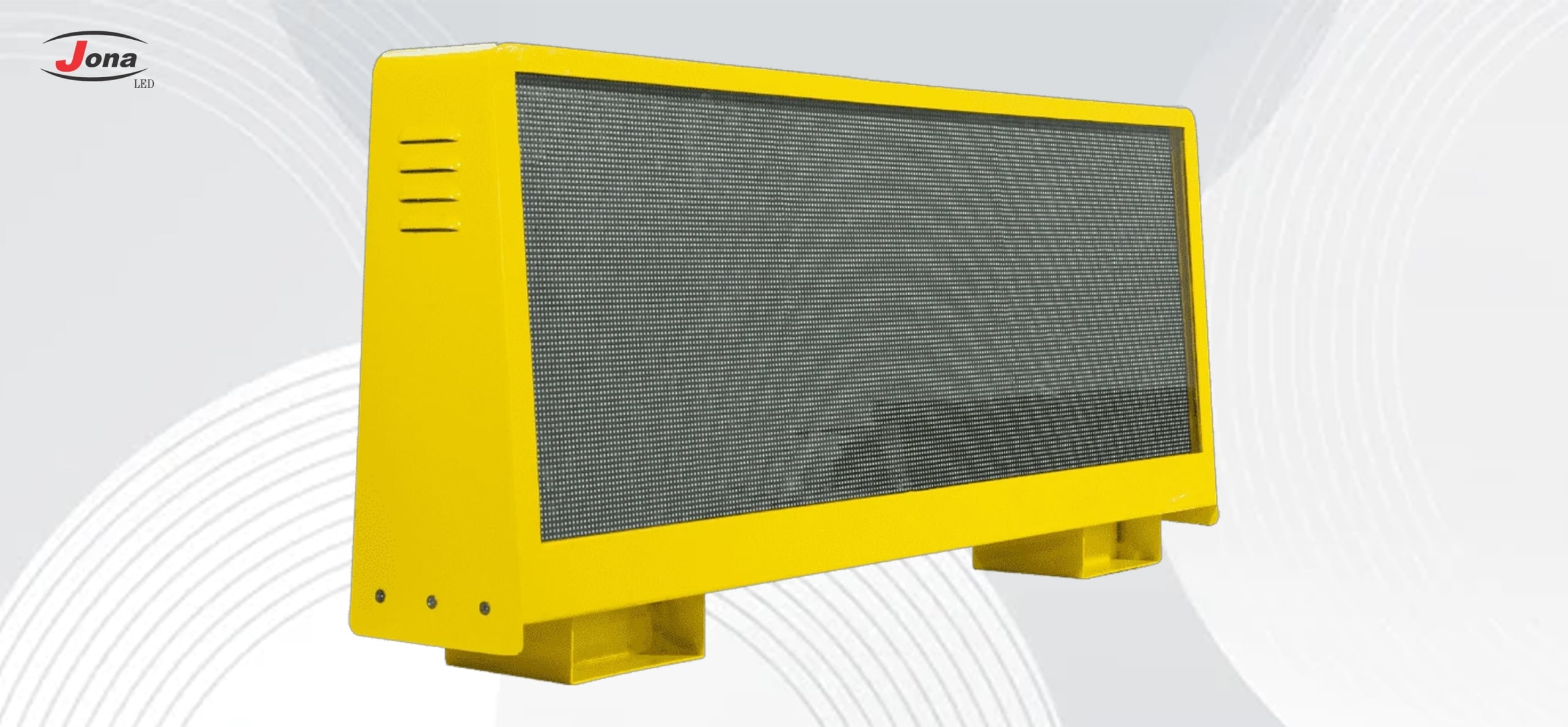

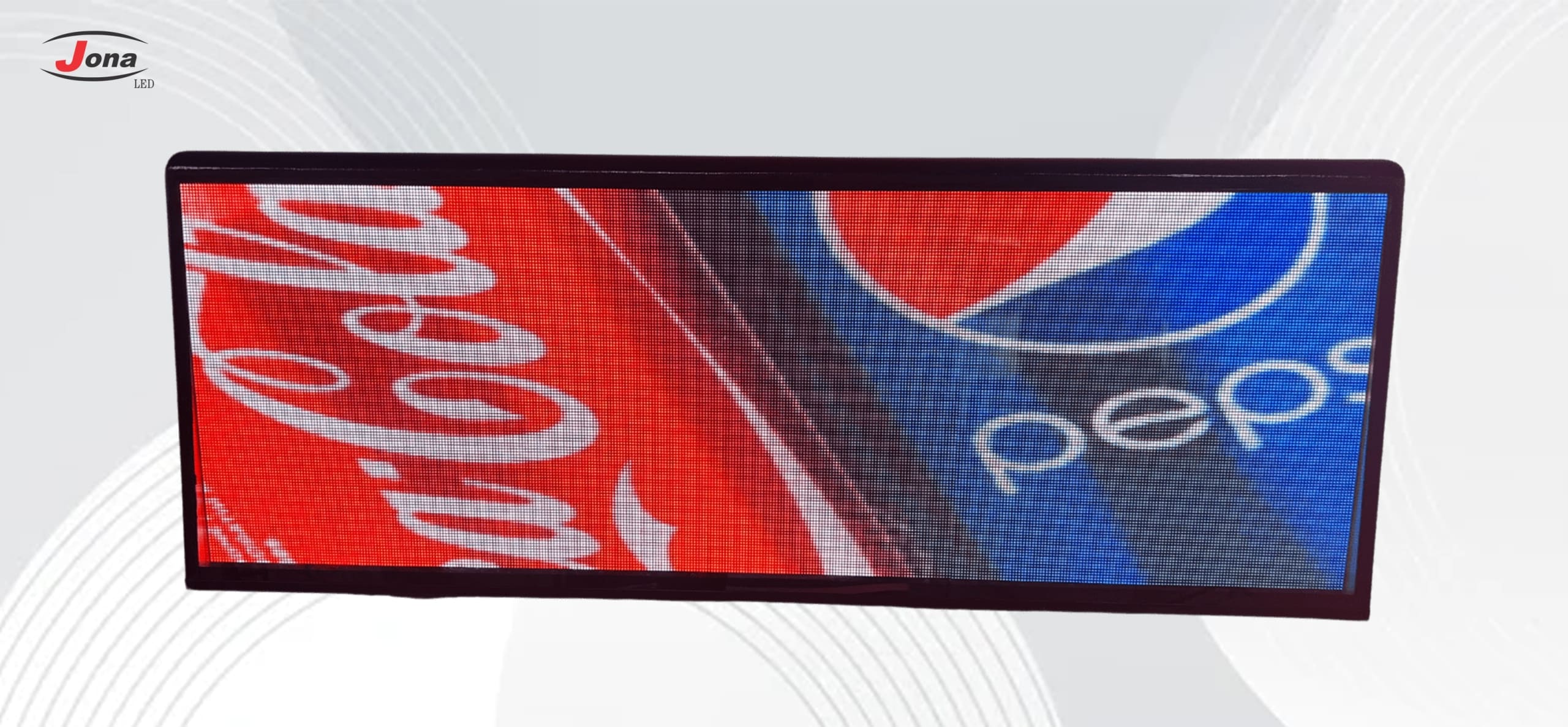

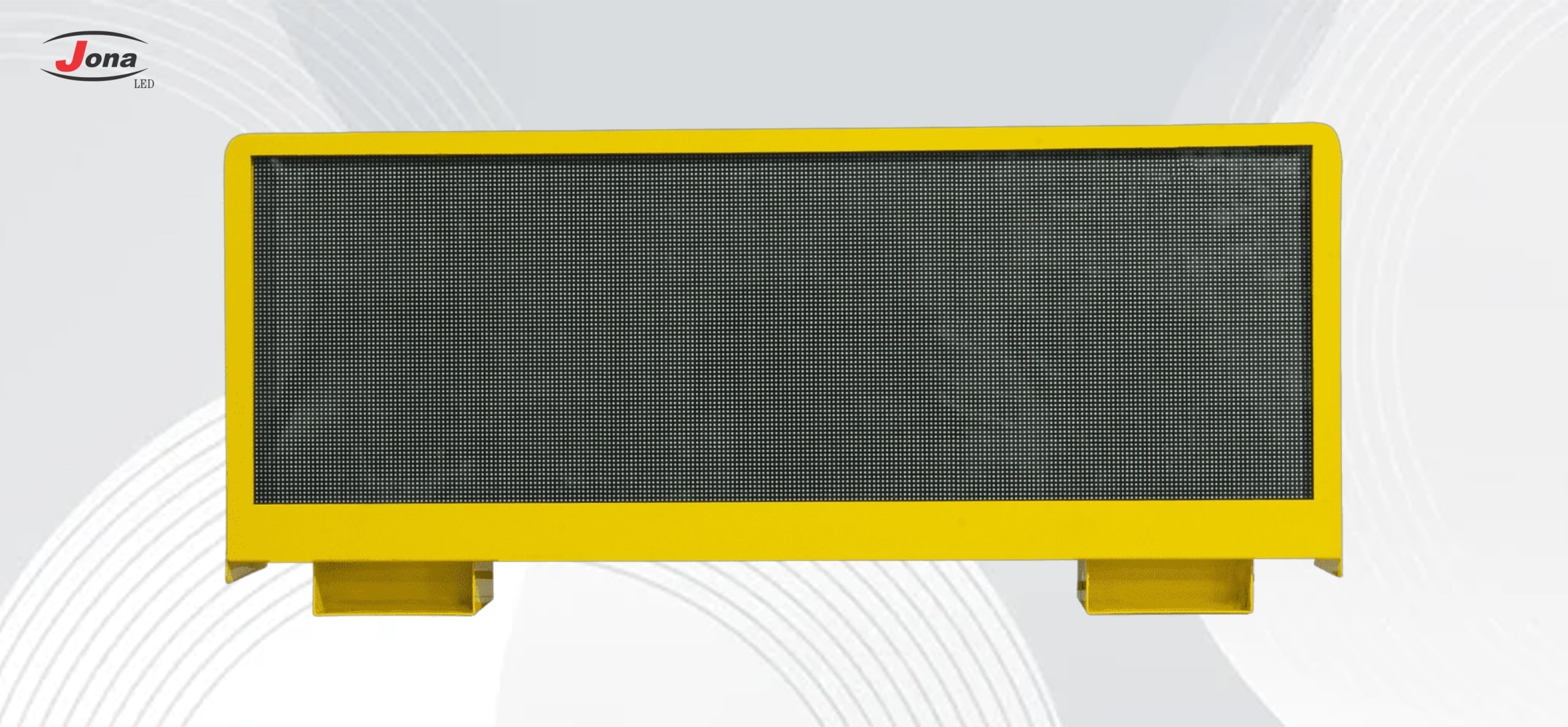

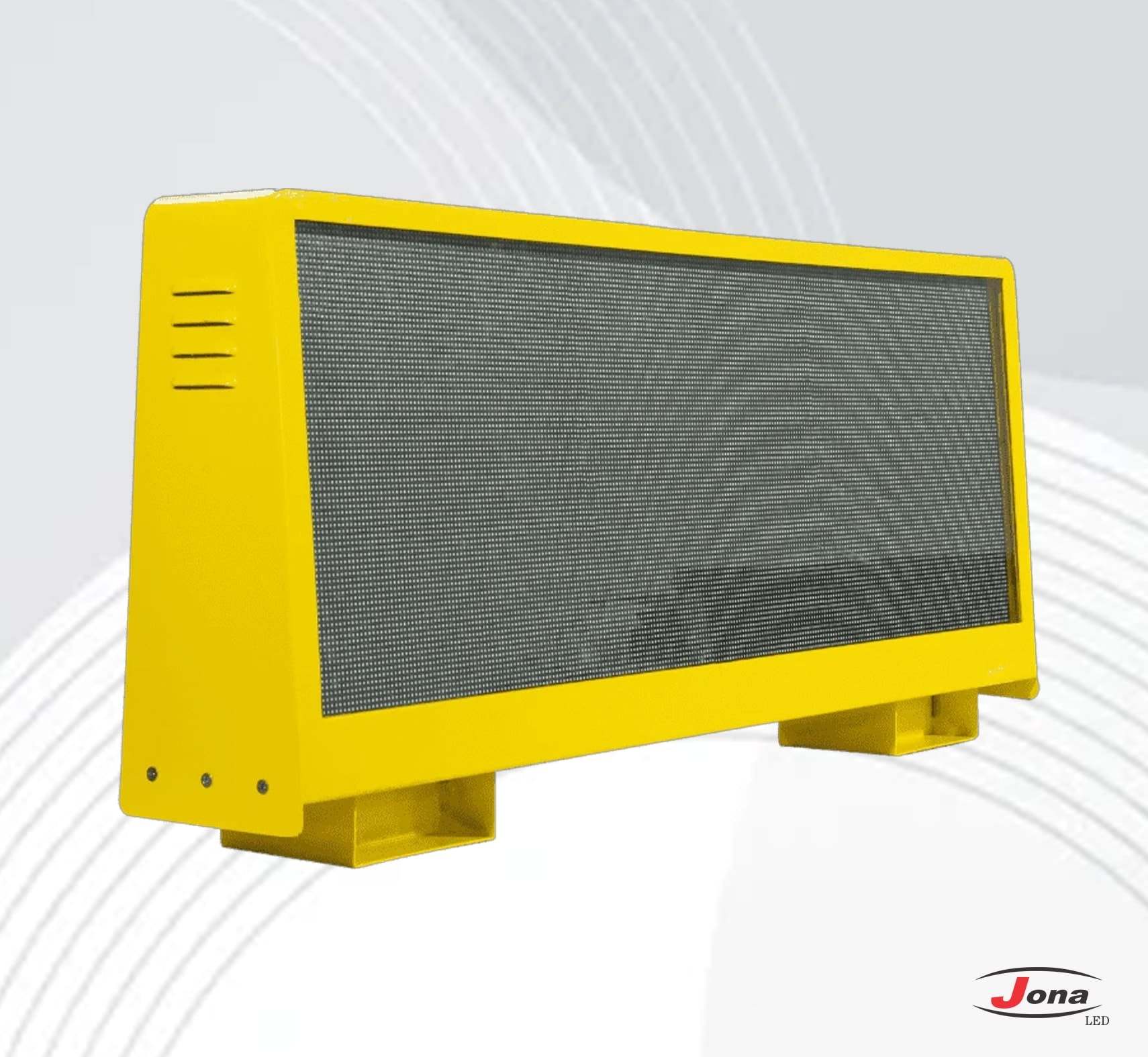

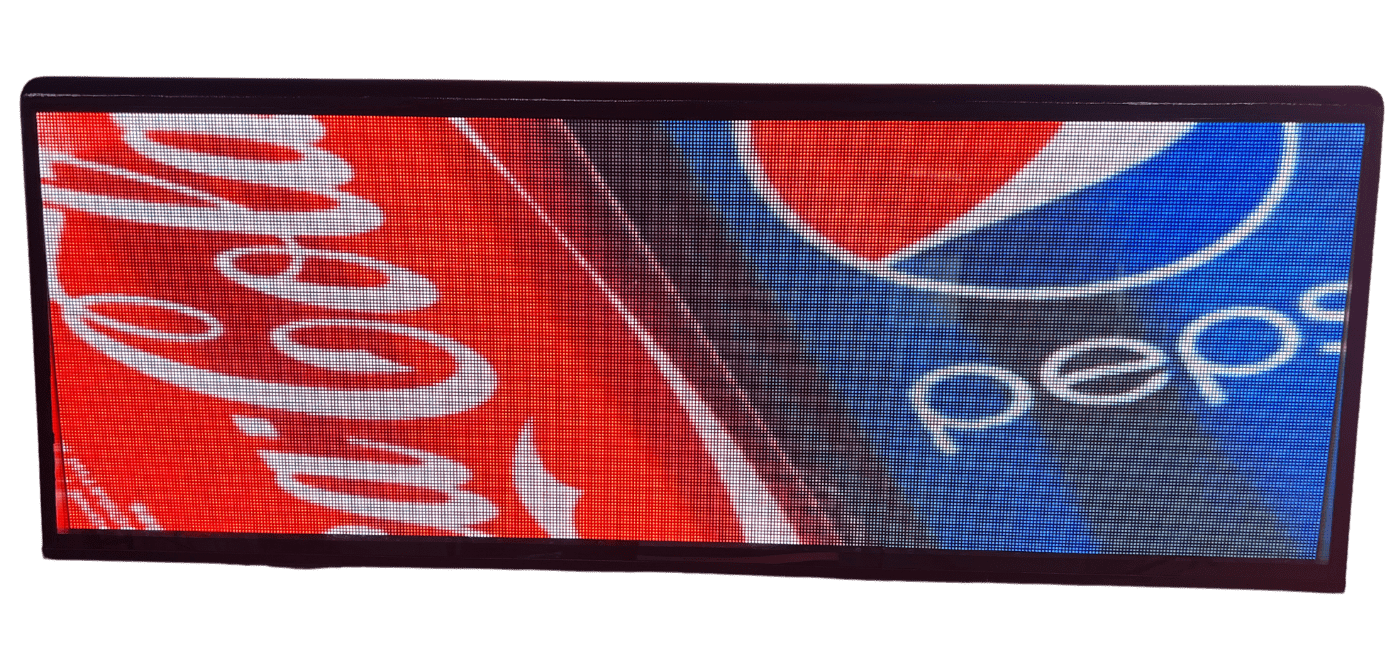

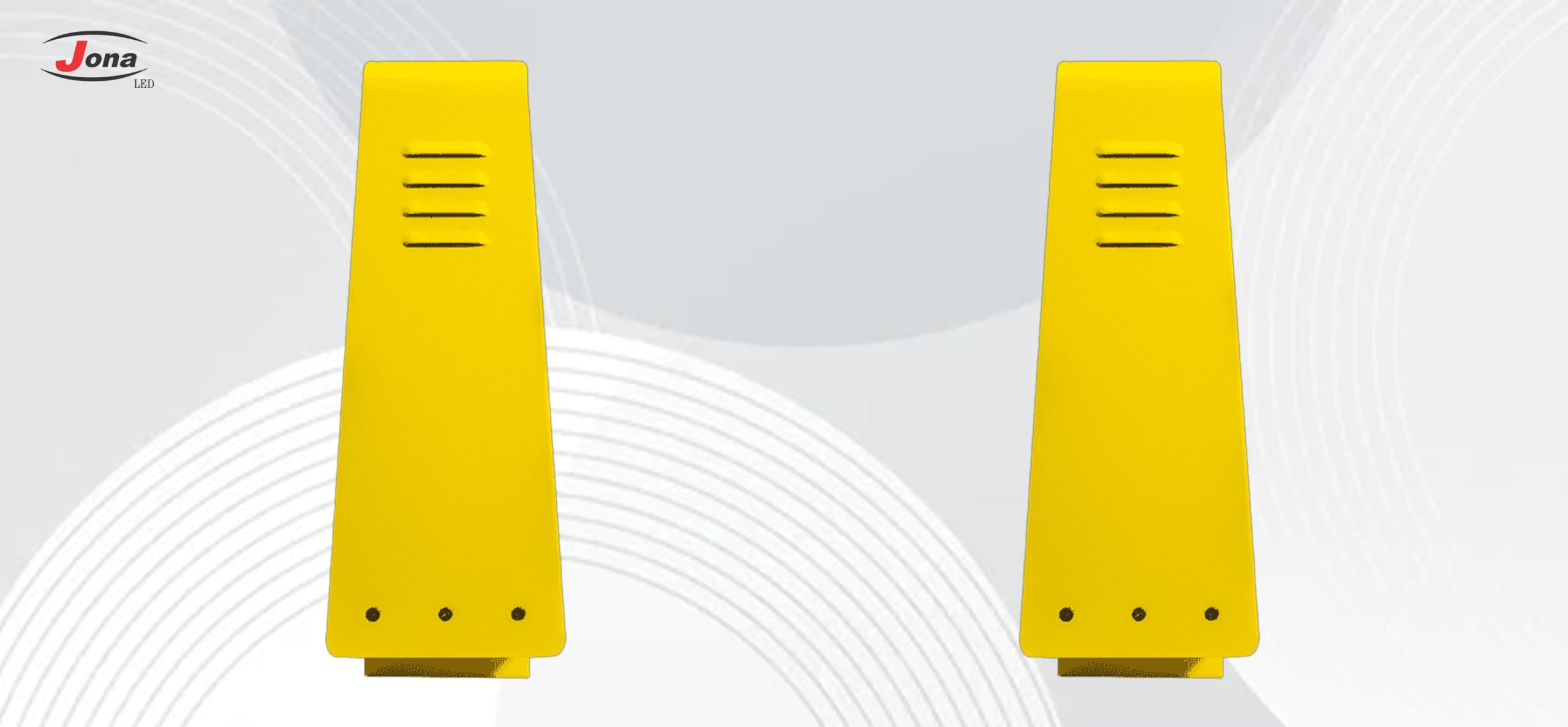

Taxi LED Display
Our N plus series cabinet size is 640 mm x 480 mm HD video and picture dot to dot matching Signage that offers an ideal combination of superior picture quality and intuitive usability and brings people it’s best video picturernrn(Pixels : P1.2,1.5,1.6,1.8,2,2.5 & 4 mm)rnrn
- Cabinetn size: 640mm x 480mm
- Floating connection design between module and cabinet, the module could be fine tuned
- Front access and front service, saving space and cost
- Matching back frame installation option
| Pixel Pitch | P1.2mm | P1.5mm | P1.8mm | P2.5mm | P4mm |
| Led | SMD1010 | SMD1010 | SMD1010 | SMD2020 | SMD2020 |
| Pixel Density | 409,600dots/m2 | 409,600dots/m2 | 295664 dots/ m2 | 160000 dots/M² | 62500 dots/M² |
| Pixel Configuration | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD |
| Manual/Automatic | Front service of module | Front service of module | Front service of module | Front service of module | Front service of module |
| Cabinet Dimension & Resolut ion | 640mm x 480mm 533 px x 400px | 640mm x 480mm 416 px x 312px | 640mm x 480mm 344 px x 258px | 640mm x 480mm 256 px x 192px | 640mm x 480mm 160 px x 120px |
| Module Dimension | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm |
| Module Resolution | 266 dots x 133 dots | 208 dots x 104 dots | 172*86 dots | 160dots x 80 dots | 80dots x 40 dots |
| Viewing Distance | 1.2 Meter | 1.5 Meter | 1.8 Meter | 2.5 Meter | 4 Meter |
| Brightness | 800 cd/M² | 800 cd/M² | 900 cd/M² | 1000cd/M² | 1000cd/M² |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | ≥7000:1 | ≥7000:1 | ≥7000:1 | ≥7000:1 | ≥7000:1 |
| Brightness uniformity | 99% | 99% | 99% | 99% | 99% |
| Color Temperature | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable |
| Refresh Rate | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Scan Rate | 1/46 | 1/46 | 46023 | 46023 | 46023 |
| Controller System | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR |
| Controller Software | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR |
| Viewing Angle | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° |
| Temperature Range (-/+)C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° |
| Humidity | 10 % ~ 80 % RH | 10 % ~ 80 % RH | 10 % ~ 80 % RH | 10 % ~ 95 % RH | 10 % ~ 95 % RH |
| Life Span | 100000 Hours | 100000 Hours | 100000 Hours | 100000 Hours | 100000 Hours |
| MTBF | 10000 Hours | 10000 Hours | 10000 Hours | AC110/220V , 50/60Hz | AC110/220V , 50/60Hz |
| Power Consumption | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs |
| Certifications/ Regulatory | BIS , MSME, CE, FCC , UL , EMC , CB, ISO 9001:2015 , ISO 14001:2015, ISO 45001:2018, ISO27001:2013 | ||||
LED displays are revolutionizing the way businesses operate and sold in today’s dynamic landscape
Incorporating LED displays to showcase important information not only elevates communication but also optimizes processes
Implementing LED displays is a strategic step for optimizing operations, employee engagement and meeting production goals.
LED Display is a powerful tool to convey your messages effectively, engage your audience, and achieve your advertising goals.
LED display makes significant impact by reaching your target audience and increasing public engagement in your campaign.
Dual power supply
LED display makes significant impact by reaching your target audience and increasing public engagement in your campaign.
LED display makes significant impact by reaching your target audience and increasing public engagement in your campaign.
