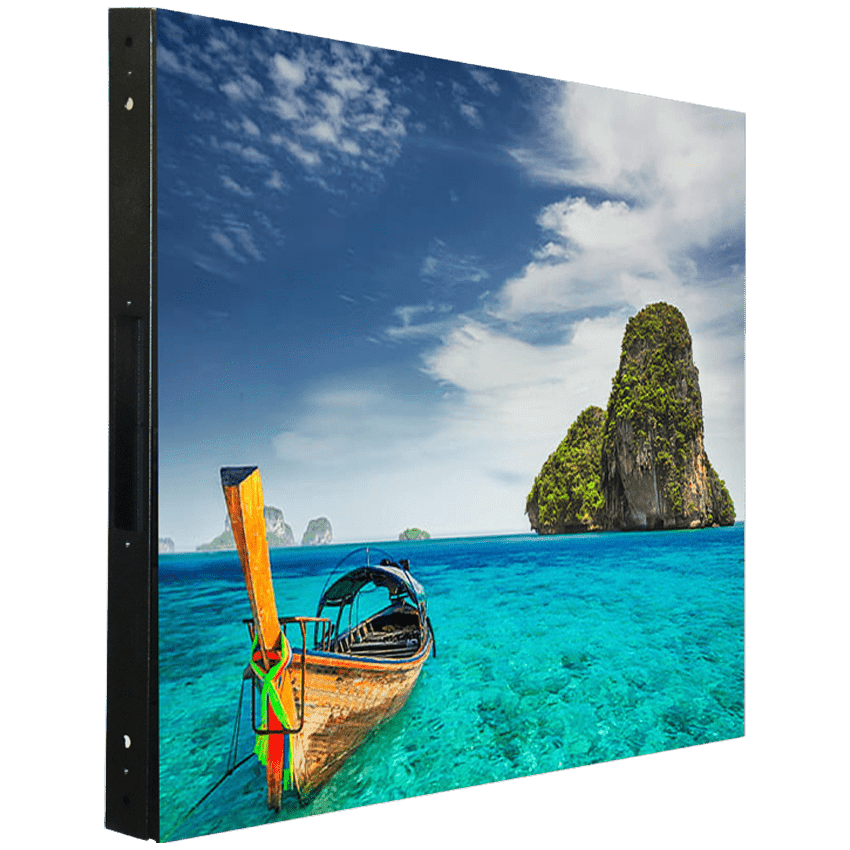

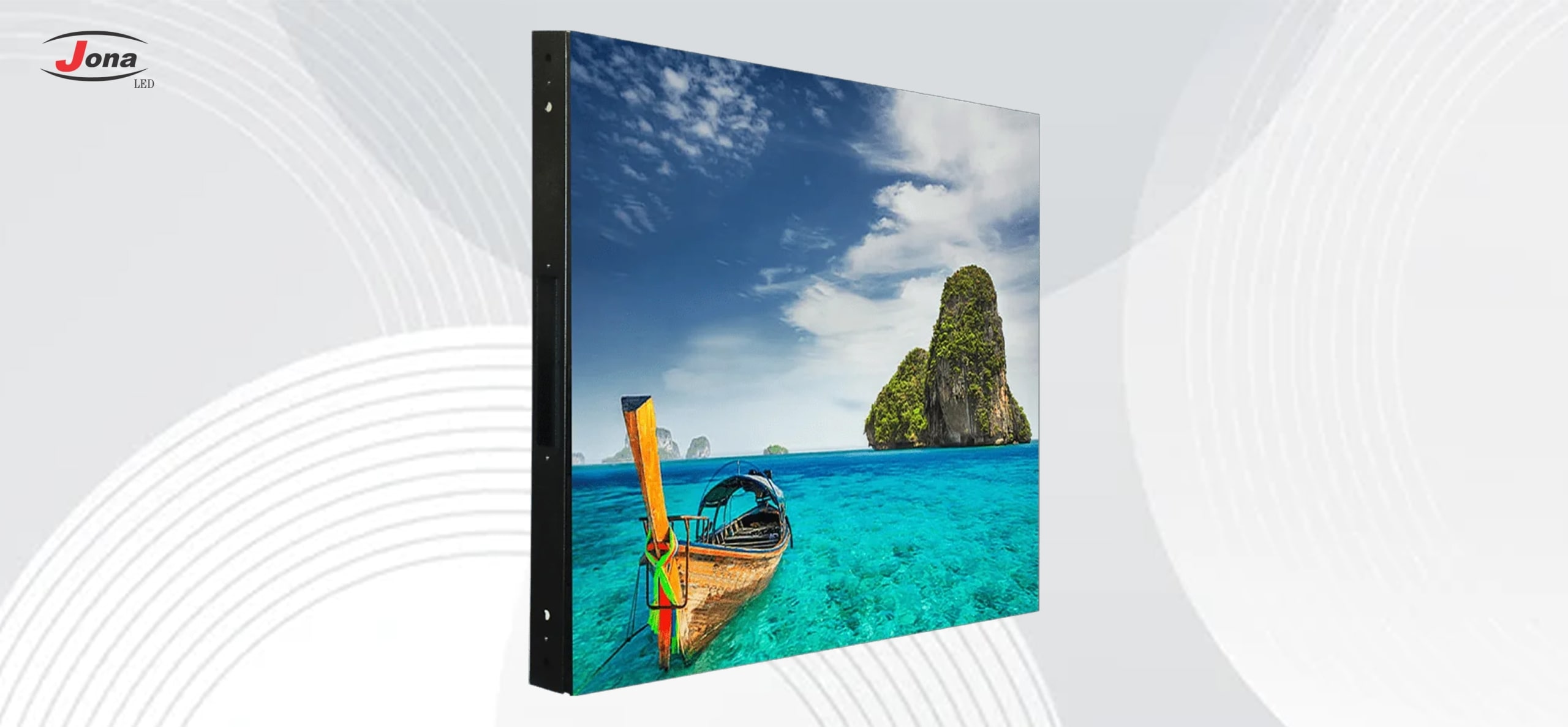

NX Series LED
Welcome to the future of visual revolution with our newly launched NX Series LED Video Wall. Designed to inspire, captivate, and transform any space, the NX Series represents the pinnacle of LED display technology. Whether you’re looking to create immersive brand experiences, engage audiences in retail environments, or enhance communication within a business, the NX Series LED Video Wall delivers unparalleled performance and stunning visuals that leave a lasting impression.
(Pixels: P 1.8, 2.5, 3 & 4 mm)
- Cutting-Edge Technology
- Intuitive Content Management and Control
- Sleek Design, Superior Craftsmanship
- Choice of Customization
- Advanced Connectivity Options
| Pixel Pitch | P1.8mm | P2.5mm | P3MM | P4mm | ||
| Led | SMD1010 | SMD2020 | SMD2020 | SMD2020 | ||
| Pixel Density | 295664 dots/m2 | 160000 dots/m2 | 110889 dots/m2 | 62500 dots/m2 | ||
| Pixel Configuration | Commercial grade 3-in-1 SMD | |||||

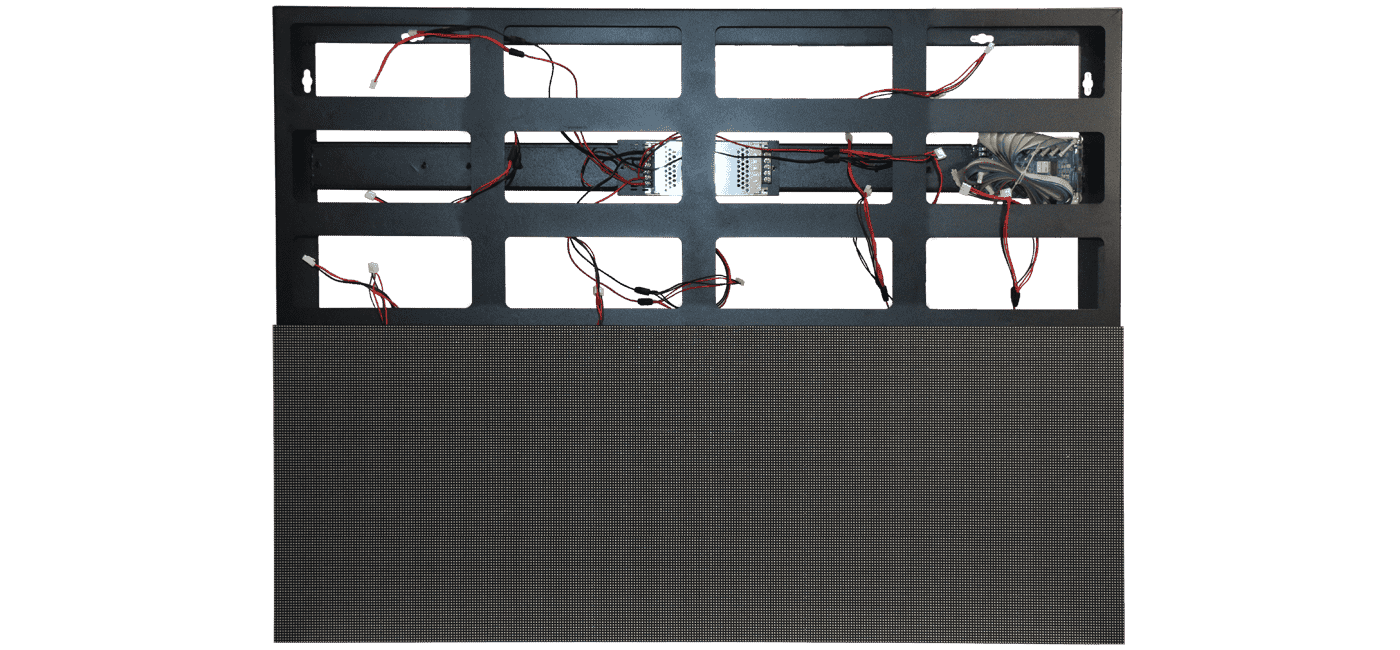

| Manual/Automatic | Front service of module | |||||
| Cabinet material | Mild Steel | |||||
| Module Dimension | 320mm x 160mm | 320mm x 160mm | 192mm x 192mm | 320mm x 160mm | ||
| Module Resolution | 172 dots x 86 dots | 160dots x 80 dots | 64 dots x 64 dots | 80dots x 40 dots | ||
| Viewing Distance | 1.8 Meter | 2.5 Meter | 3 Meters | 4 Meter | ||
| Brightness | 900 cd/M² | 1000cd/M² | 1000cd/M² | 1000cd/M² | ||
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | ||
| Contrast Ratio | ≥7000:1 | ≥7000:1 | ≥7000:1 | ≥7000:1 | ||
| Brightness uniformity | 99% | |||||
| Color Temperature | 3000 – 10000 K, adjustable | |||||
| Refresh Rate | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | ||
| Scan Rate | Jan-43 | Jan-32 | Jan-32 | 20-Jan | ||
| Controller System | NOVASTAR | |||||
| Controller Software | NOVASTAR | |||||
| Viewing Angle | Horizontal ：160°, Vertical 160° | |||||
| Temperature Range (-/+)C° | 0 C° ~ 45 C° | |||||
| Humidity | 10 % ~ 80 % RH | 10 % ~ 95 % RH | 10 % ~ 95 % RH | 10 % ~ 95 % RH | ||
| Life Span | 100000 Hours | |||||
| MTBF | 10000 Hours | |||||
| Power Consumption | Max : 500 w/Pcs , Average : 160 w/Pcs |
Max : 500 w/Pcs , Average : 160 w/Pcs |
Max : 500 w/Pcs , Average : 160 w/Pcs |
Max : 500 w/Pcs , Average : 160 w/Pcs |
||
| Certifications/ Regulatory | BIS , MSME, CE, FCC , UL , EMC , CB, ISO 9001:2015 , ISO 14001:2015, ISO 45001:2018, ISO27001:2013 | |||||
LED displays are revolutionizing the way businesses operate and succeed in today’s dynamic landscape
Incorporating LED displays to showcase important information not only elevates communication but also optimizes processes
Implementing LED displays is a strategic step for optimizing operations, employee engagement and meeting production goals.
LED Display is a powerful tool to convey your messages effectively, engage your audience, and achieve your advertising goals.
LED display makes significant impact by reaching your target audience and increasing public engagement in your campaign.
LED display makes significant impact by reaching your target audience and increasing public engagement in your campaign.
Your LED display ought to appear picture-perfect at all times. You can effortlessly create a seamless canvas with the Jona Led screens
Jona Led has developed components like power-saving ICs & lamps, unique PCBs, and efficient power supplies that guarantee lower power consumption than average
Greater stability and a smooth transition between display and video images are what we guarantee
WHY CHOOSE US?
Illuminating Your Vision with Unmatched LED Expertise
Our commitment to quality is unwavering. We craft LED displays that are renowned for their exceptional performance and longevity.
We stay at the forefront of LED technology, ensuring you have access to the latest innovations and features.
With a legacy of successful projects and satisfied clients, we bring a wealth of experience to every endeavor.
Our support extends beyond the sale. We’re here to assist you with any inquiries, technical support, and maintenance services.
Latest work Implementations
Explore these showcases to gain insights into the impact of our solutions in real-world applications and discover how we can elevate your operations to new heights. For more details, don’t hesitate to get in touch with our team..
