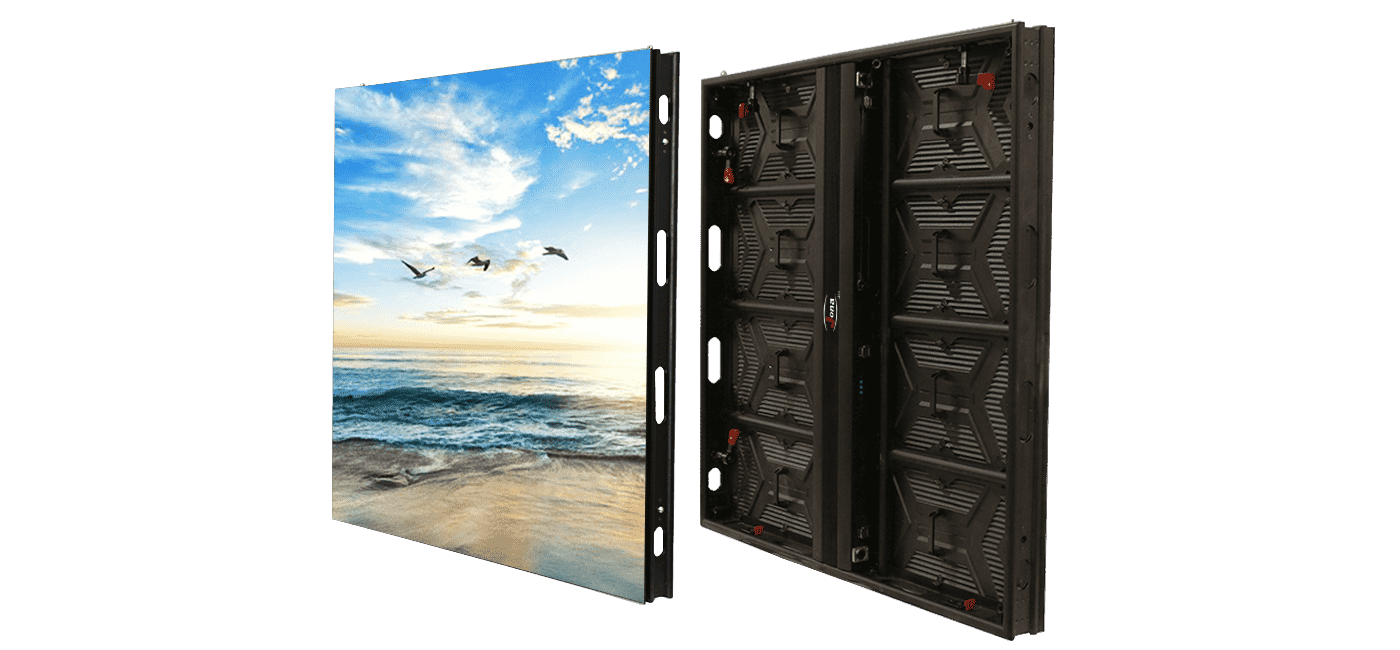

JD Series LED
Powered by the latest advancements in LED Technology, the JD Series Fixed Outdoor LED Video Wall delivers incredible picture quality & experience. With wide range of pixel pitches and resolutions available, you have the flexibility to create eye- catching displays that leave a lasting impression on your audience.
Elevate your Outdoor Visuals with JD Series Fixed Outdoor LED Video Wall. Contact us today to learn more and bring your vision to life!
(Pixels: P 3.9, 4.8, 6.25, 7.8 & 10.25 mm)
- Advanced Display Technology
- Support High Dynamic Range
- Ensures smooth performance
- Exceptional image quality
- Adapts to evolving demands and specifications
| Pixel Pitch | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
|---|---|---|---|---|---|
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Physical Density (dots/m2) | 65536 | 43264 | 25600 | 16384 | 9216 |
| Module Resolution | 128X64 | 104X52 | 80X40 | 64X32 | 48X24 |
| Module Size (wxh) | 500X250 | 500X250 | 500X250 | 500X250 | 500X250 |

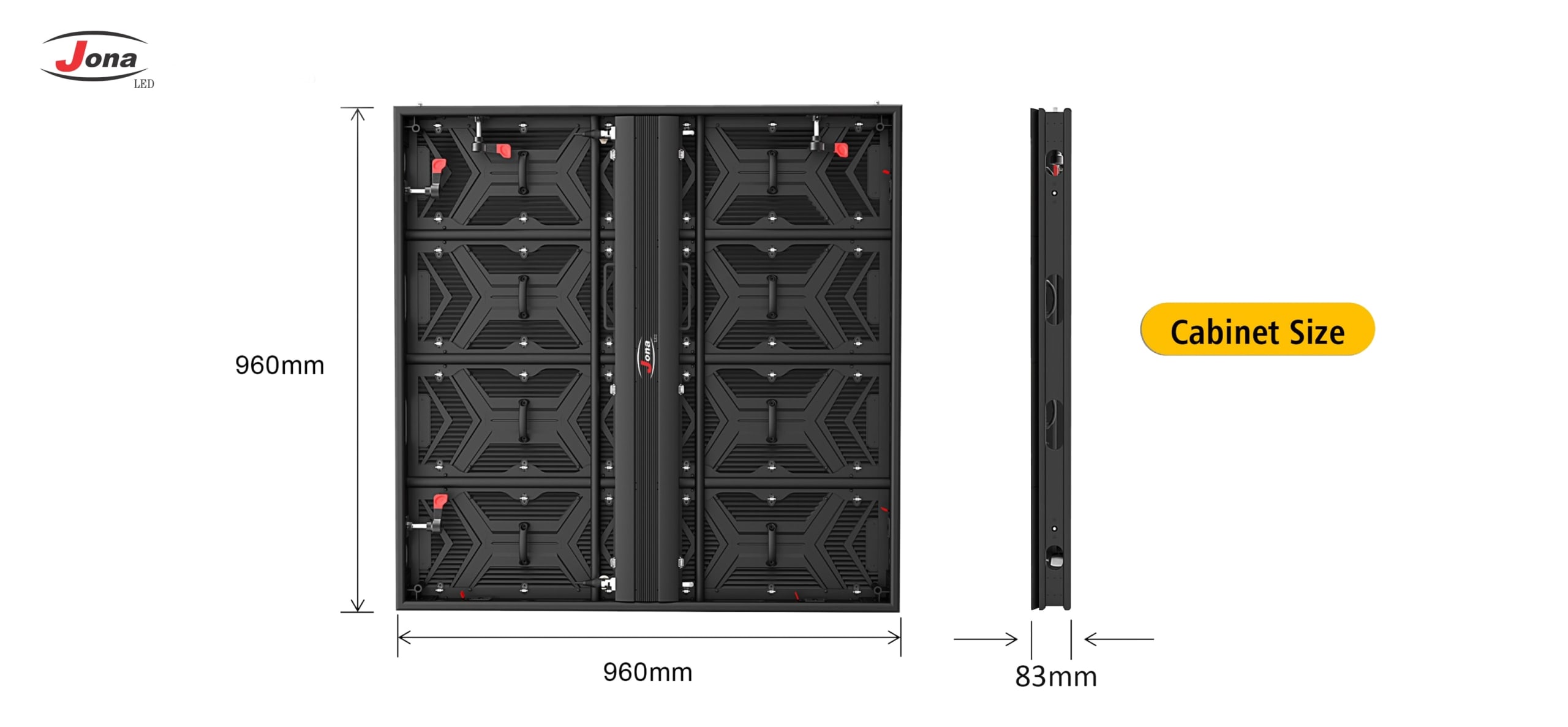

| Cabinet Size (mm) | 1000X1000X83 | 1000X1000X83 | 1000X1000X83 | 1000X1000X83 | 1000X1000X83 |
| Cabinet Resolution | 256X256 | 208X 208 | 160X160 | 128X128 | 96X96 |
| Module QTY /Cabinets (WXH) | 2 X 4 | 2 X 4 | 2 X 4 | 2 X 4 | 2 X 4 |
| Cabinet Weight (Kg) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Maintenance Mode | Front/Back maintenance | Front/Back maintenance | Front/Back maintenance | Front/Back maintenance | Front/Back maintenance |
| Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness | 6000 | 6000 | 6000 | 6000 | 6000 |
| Color Temperature (K) | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable |
| Viewing angle (H/V) | 160º / 160º | 160º / 160º | 160º / 160º | 160º / 160º | 160º / 160º |
| The best viewing distance | 4-100m | 4-100m | 6-150m | 8-150m | 10- 200m |
| Contrast Ratio | 10000 :1 | 10000 :1 | 10000 :1 | 10000 :1 | 10000 :1 |
| Frame Frequency | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Drive Mode | Static, 1/16 Scan | Static, 1/13 Scan | Static, 1/8 Scan | Static, 1/4 Scan | Static, 1/2 Scan |
| Grey Level | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max Power Consumption(W/m2) | 600 | 780 | 780 | 780 | 780 |
| Average Consumption(W/m2) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| IP Grade | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
| Input Power | AC90-264V, 47-63 Hz | ||||
| Working Temperature/Humidity (oC/RH) | -20~60ºC / 10%~85% | ||||
LED displays are revolutionizing the way businesses operate and succeed in today’s dynamic landscape
Our outdoor LED displays provide high brightness and excellent visibility even in peak hours of sunlight.
Due to technology, the end user may keep an eye on the LED video wall’s status in real-time and receive warnings when any component fails.
LED Display is a powerful tool to convey your messages effectively, engage your audience, and achieve your advertising goals.
LED display makes significant impact by reaching your target audience and increasing public engagement in your campaign.
LED display makes significant impact by reaching your target audience and increasing public engagement in your campaign.
Your LED display ought to appear picture-perfect at all times. You can effortlessly create a seamless canvas with the Jona Led screens
Jona Led has developed components like power-saving ICs & lamps, unique PCBs, and efficient power supplies that guarantee lower power consumption than average.
Greater stability and a smooth transition between display and video images are what we guarantee
