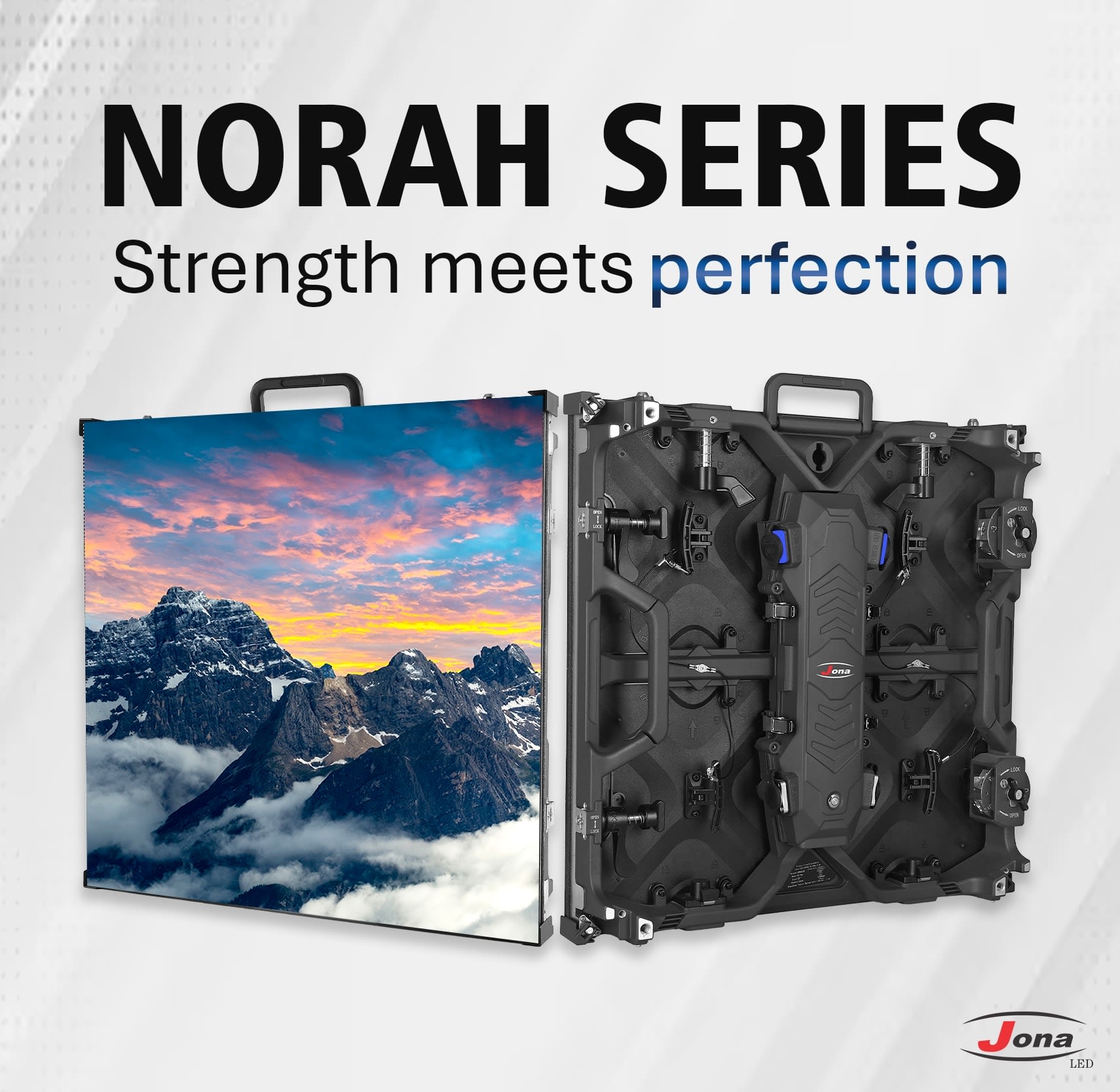

Norah Indoor Series LED
Introducing the latest 5th generation Jona LED Norah Indoor Series LED video wall displays that will revolutionize your event viewing experience. The Norah Indoor Series is the ideal rental solution for events with its sharp, bright images that entice audiences, and its mechanical components that are designed to withstand frequent assembly and breakdown requirements.
It comes with three-layer waterproofing. They offer full front or rear maintenance of electronics and magnetically-attached cabinets that can be handled by one person, and with an extra signal backup port and complete unique corner protection, they are easy to install and have a quick-lock system that makes them easy to handle.
| Parameter Model | Indoor P1.56 | Indoor P1.95 | Indoor P2.6 | Indoor P2.97 | Indoor P3.91 |
| LED Lamp | SMD1415 | SMD1415 | SMD1415 | SMD1415 | SMD2020 |
| Pixel Pitch | 1.56mm | 1.95mm | 2.6mm | 2.97mm | 3.91mm |
| Pixel Density | 410,914 pixels/m² | 262,984 pixels/m² | 147,474 pixels/m² | 113,367 pixels/m² | 65,410 pixels/m² |
| Pixels Per Panel | 102,400 pixels | 65,536 pixels | 36,864 pixels | 28,224 pixels | 16,384 pixels |
| Module Size | 250mm*250mm | ||||
| Module Resolution | 160*160 dots | 128*128 dots | 96*96 dots | 84*84 dots | 64*64 dots |
| Panel Size | 500mm*500mm | ||||
| Panel Resolution | 320*320 dots | 256*256 dots | 192*192 dots | 168*168 dots | 128*128 dots |
| Panel Weight | 7 KGS | ||||
| Module Maintenance | Front/Rear | ||||
| Curve | (Convex) -10°,-5°,0°,+5°,+10°(Concave) | ||||
| Brightness | 600 Nits | 700 Nits | 800 Nits | 800 Nits | 800 Nits |
| Aspect Ratio | 1:1 | ||||
| Panel Area | 0.5 ㎡ | ||||
| Recommended Viewing Distance | ≥1.56M | ≥1.95M | ≥2.6M | ≥2.97M | ≥3.91M |
| Environment | Indoor | ||||
| Protection level | IP31 | ||||
| Material | Die-cast Aluminum | ||||
| Control unit | Nova Star | ||||
| Brightness Control | Software/Automatic | ||||
| Color Temperature | 7500 K | ||||
| Viewing Angle | Horizontal≥140°,Vertical ≥120° | ||||
| Contrast Ratio | 8,000:1 | ||||
| Input Power (Max) | ≤200W/pc | ||||
| Input Power (Typical) | 150W/pc | ||||
| Input Voltage | 100-240 V | ||||
| Scan Method | 1/40 | 1/32 | 1/32 | 1/21 | 1/16 |
| Refresh Rate | 3840@60 Hz | ||||
| Video Frame Rate | 50/60 Hz | ||||
| Input Power Frequency | 50~60 Hz | ||||
| Mean fault free | ≥10,000 Hours | ||||
| LED Life Time | 100,000 Hours | ||||
| Operating Temperature | -10℃~+45℃ | ||||
| Operating Humidity | 10-80% No Condensation | ||||
| Standard Mounting Configuration | Hanging, Stacking | ||||
LED displays are revolutionizing the way businesses operate and sold in today’s dynamic landscape
It has a quick-plug design that allows it to be dismounted quickly and prevents pin header from being deformed during installation
Using energy-saving technology, our exclusively designed LED panels are 50% more energy-efficient than conventional LED screens

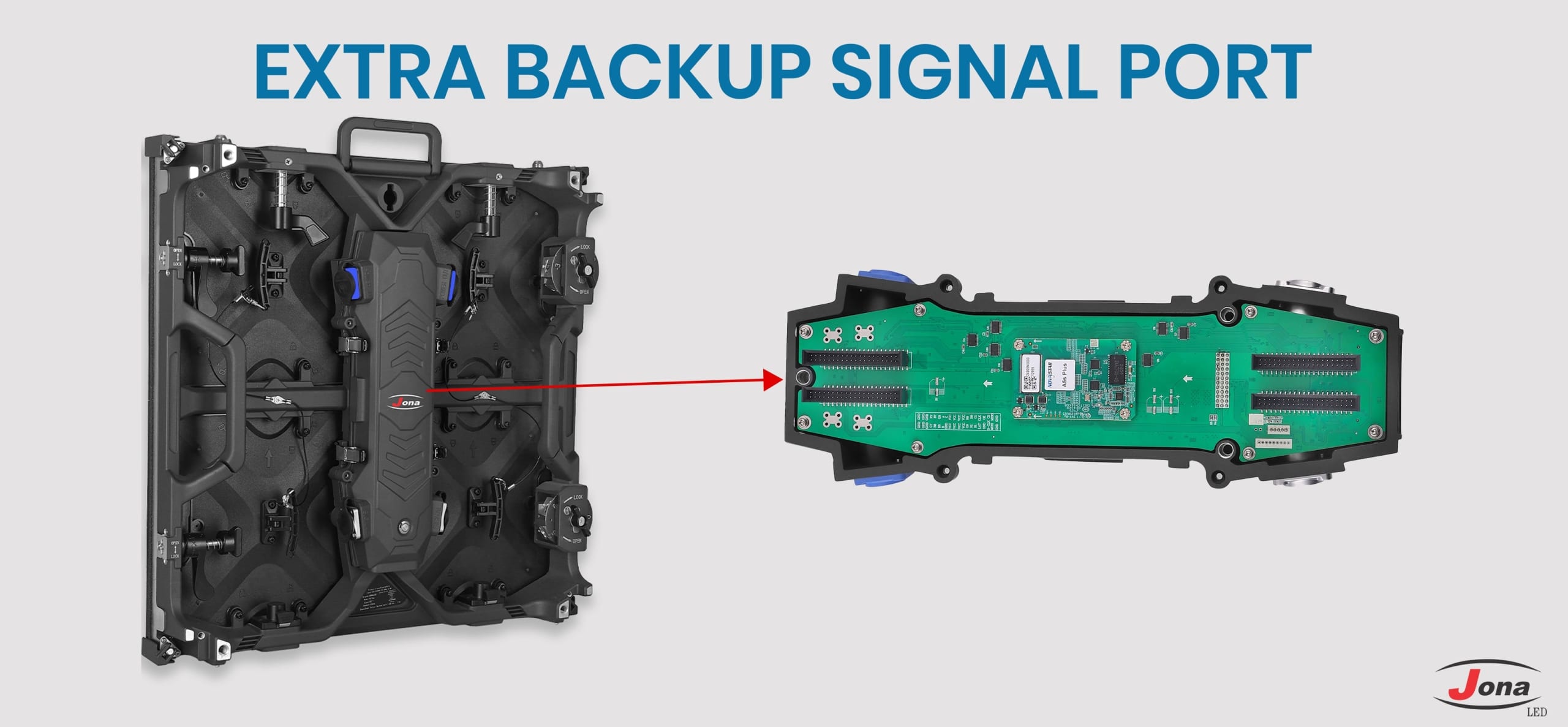

We have developed a dual power and signal backup solution- i.e. a “1+1” parallel redundancy design. It increases the on-site use’s stability
High brightness and cinema-quality color paired with powerful processing (ICNIC 2153, 4K@120Hz, HDR10 compatibility) delivers brilliant, true-to-life detail
LED display makes significant impact by reaching your target audience and increasing public engagement in your campaign.
Implementing LED displays is a strategic step for optimizing operations, employee engagement and meeting production goals.
Your LED display ought to appear picture-perfect at all times. You can effortlessly create a seamless canvas with the Jona Led screens
Jona Led has developed components like power-saving ICs & lamps, unique PCBs, and efficient power supplies that guarantee lower power consumption than average
