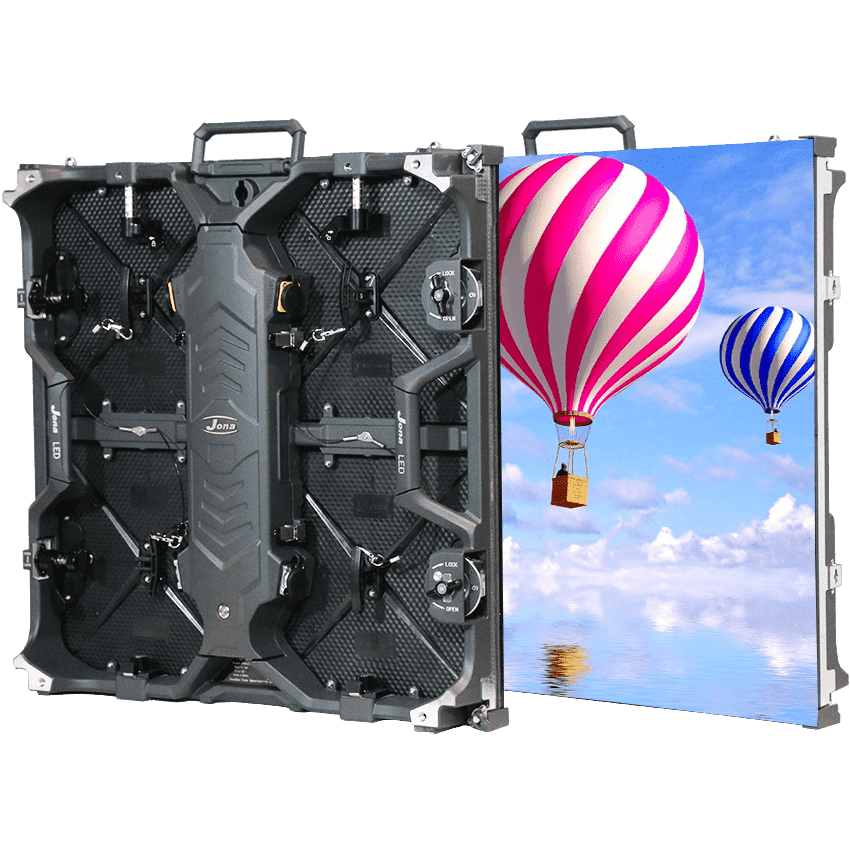

Platinum Plus Outdoor Series LED
Introducing the latest 7th generation Jona LED Platinum Plus Series LED video wall displays that will revolutionize your event viewing experience. The Platinum Plus Series is the ideal rental solution for events with its sharp, bright images that entice audiences, and its mechanical components that are designed to withstand frequent assembly and breakdown requirements.
It comes with three-layer waterproofing. They offer full front or rear maintenance of electronics and magnetically-attached cabinets that can be handled by one person, and with an extra signal backup port and complete unique corner protection, they are easy to install and have a quick-lock system that makes them easy to handle.
| Parameter Model | Outdoor P3.6 | Outdoor P4.8 |
|---|---|---|
| LED Lamp | SMD1820 | SMD1820 |
| Pixel Pitch | 3.6mm | 4.8mm |
| Pixel Density | 77,160 pixels/m² | 43,402 pixels/m² |
| Pixels Per Panel | 25,600 pixels | 14,400 pixels |
| Module Size | 288mm*288mm | 288mm*288mm |
| Module Resolution | 80*80 dots | 60*60 dots |
| 60*60 dots | 576mm*576mm | 576mm*576mm |
| Panel Resolution | 160*160 dots | 120*120 dots |
| Panel Weight | 9 Kgs | 9 Kgs |
| Module Maintenance | Front/Rear | Front/Rear |
| Curve | (Convex) -6°,-3°,0°,+3°,+6°(Concave) | (Convex) -6°,-3°,0°,+3°,+6°(Concave) |
| Brightness | 4000 Nits | 4500 Nits |
| Aspect Ratio | 1:1 | 1:1 |
| Panel Area | 0.331776 ㎡ | 0.331776 ㎡ |
| Recommended Viewing Distance | ≥3.6M | ≥4.8M |
| Environment | ≥3.6M | ≥4.8M |
| Environment | Outdoor | Outdoor |
| Protection level | IP65 | IP65 |
| Material | Die-cast Aluminum | Die-cast Aluminum |
| Control unit | Nova Star | Nova Star |
| Brightness Control | Software/Automatic | Software/Automatic |
| Color Temperature | 7500 K | 7500 K |
| Viewing Angle | Horizontal≥140°,Vertical ≥120° | Horizontal≥140°,Vertical ≥120° |
| Contrast Ratio | 8,000:1 | 8,000:1 |
| Input Power (Max) | ≤200W/pc | ≤200W/pc |
| Input Power (Typical) | 150W/pc | 150W/pc |
| Input Voltage | 220V | 220V |
| Scan Method | 1/20 | 1/10 |
| Refresh Rate | 3840@60 Hz | 3840@60 Hz |
| Video Frame Rate | 50/60 Hz | 50/60 Hz |
| Input Power Frequency | 50~60 Hz | 50~60 Hz |
| Mean fault free | ≥10,000 Hours | ≥10,000 Hours |
| LED Life Time | 100,000 Hours | 100,000 Hours |
| Operating Temperature | -10℃~+45℃ | -10℃~+45℃/td> |
| Operating Humidity | 10-80% No Condensation | 10-80% No Condensation |
| Standard Mounting Configuration | Standard Mounting Configuration | Hanging, Stacking |
LED displays are revolutionizing the way businesses operate and sold in today’s dynamic landscape
High brightness and extended longevity are guaranteed by the Kinglight lamp, making it ideal for outdoor advertising, high-end conferences, and HD visuals
Our cutting-edge lock system will securely lock your cabinets, and make installation possible by one person only
Our unique design panel is flexible and adaptable to a variety of environments, and it can be utilized as a dance floor, cube, or curved led with ease
We ensure unique protection for all four corners and therefore, provide maximum protection for module edges, making your LED panel durable
It has a quick-plug design that allows it to be dismounted quickly and prevents pin header from being deformed during installation.
High brightness and cinema-quality color paired with powerful processing (ICNIC 2153, 4K@120Hz, HDR10 compatibility) delivers brilliant, true-to-life detail.
Using energy-saving technology, our exclusively designed LED panels are 50% more energy-efficient than conventional LED screens.
We have developed a dual power and signal backup solution- i.e. a “1+1” parallel redundancy design. It increases the on-site use’s stability.
